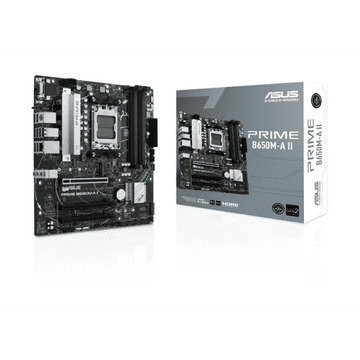

MATIČNA PLOČA: AMD AM5
ZA PROCESORE: AMD RYZEN 7000 Series
FORMAT: ATX format 24.4 cm x 24.4 cm
ČIPSET: AMD B650
PAMET:
4 x DDR5 DIMM ECC i Non-ECC, Un-buffered Memorija 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz (ovisno o procesoru) do ukupno 192GB kapaciteta, dual channel i EXtended Profiles for Overclocking, OptiMem II podrška
GRAFIKA: DA – preko APU
RAID: DA (0,1,10)
PROŠIRENE SLOTE:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0/4.0 x8/x4
2 x PCI Express 3.0/4.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN čip (10/100/1000Mbit/2.5Gbit)
ZVUČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-kanalni)
UNUTARNJI PRIKLJUČCI:
Fan and Cooling related
1 × 4-pin CPU Fan header
1 × 4-pin CPU OPT Fan header
3 × 4-pin Chassis Fan headers
Power related
1 × 24-pin Main Power connector
1 × 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Razno
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14–1pin)
1 × 10–1 pin System Panel header
VANJSKI PRIKLJUČCI:
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
DODATNO:

Fan and Cooling related
1 × 4-pin CPU Fan header
1 × 4-pin CPU OPT Fan header
3 × 4-pin Chassis Fan headers
Power related
1 × 24-pin Main Power connector
1 × 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Razno
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14–1pin)
1 × 10–1 pin System Panel header
Posebne značajke
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Softverske značajke
ASUS Ekskluzivni Softver
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (besplatna verzija)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Web stranica proizvođača: https://www.asus.com/…0m-a-ii-csm/
